Configure Integrated Scanning

To set up Integrated Scanning:

  1. Set up the scan actions.

  2. Configure the capture settings.

  3. Enable Integrated Scanning for a device.

Integrated Scanning setup steps

Step 1: Set up the scan actions

You can create any number of scan actions to meet your needs.

  1. Select Devices > Scan Actions. The Scan Actions page is displayed with a list of all available scan actions.

    List of scan actions in the PaperCut MF admin interface
  2. In the Actions menu, click Create new. The Scan Action Details page is displayed.

    Scan action settings in the PaperCut MF admin interface
  3. Set the scan action destination. For setup details, click the destination in the list below.

Email

  1. In the Destination area, complete the following fields:

    • Type—select Email.

    • Label—enter a name for the scan action (maximum 25 characters). This label is displayed on the device to the user.

    • To—select one of the following:

      • User’s email address—the scan job is delivered to the user’s email address.

      • Custom email address—select this option, then specify the email address to which you want the scan job delivered, for example, invoices@mycompany.com.

    • From—select one of the following:

      • User’s email address—the scan job is delivered from the user’s email address.

      • Custom email address—select this option, then specify the email address from which you want the scan job delivered, for example, invoices@mycompany.com. By default, this field is pre-populated with the system From address as specified in Options > Notifications > Email Options > From Address. This allows you to whitelist scanning emails on your mail server.

    • Subject—enter the default email subject. You can use substitution macros, such as %Label% in the email subject. For more information about the available macros, click More Information in the Destination area or see Substitution variables/macros.

    • User can edit—select this check box if you want to allow users to change the default email subject at the device.

Folder

  1. In the Destination area, complete the following fields:

    • Type—select Folder.

    • Label—enter a name for the scan action (maximum 25 characters). This label is displayed on the device to the user.

    • Path—select one of the following:

      • User’s home folder—the scan job is delivered to the user’s home folder.

      • A folder path—select this option, then specify the path to which you want the scan job delivered, for example, N://finance/docs/.

Cloud Storage

  1. In the Destination area, complete the following fields:

    • Type—select Cloud Storage.

      If this is the first time you are creating a Scan to Cloud Storage scan action, a window is displayed prompting you to activate PaperCut MF Cloud Services.

      1. If you want to manually select the hosting region for PaperCut Cloud Services:

        • Select a local region to minimize the transit of your documents outside your country during processing.

        • Make sure your selection adheres to your organization's privacy policy and regulations.

      2. Click Activate.

      PaperCut MF checks that you have active Maintenance & Support (M&A)—a requirement for creating Scan to Cloud Storage actions.

    • Cloud storage provider—select the cloud storage provider.

    • Label—type a name for the scan action (maximum 25 characters). This label is displayed on the device to the user.

    • SharePointDocument Library URL—(SharePoint Online only) type the URL of the document library in which you want the scan jobs delivered. When using sub-sites, you need to specify the hierarchy, for example:

      https://companyname.sharepoint.com/sites/melbourne/Invoices/AllItems.aspx

      Your URL might look more complex than this example, but PaperCut NG/MF will work out the correct path if you copy the entire URL.

Fax

Scan to Fax can be delivered via SMTP or API. For a more details, take a look at Scan to Fax explained.

For Scan to Fax actions, the default color mode is Grayscale.

Delivery via SMTP

  1. Select Devices > scan actions.

  2. In the Actions menu, click Create new. The Scan Action Details page is displayed.

  3. In the Destination section, select Fax.

  4. Complete the following fields:

    • Fax provider—Select Basic (Generic SMTP).

    • Label—Enter a name for the scan action (maximum 25 characters). This label is displayed on the device to the user, so make it easy to understand. For example, ‘Scan to Pathology’. As you type, to the right you can see how the label will look.

  5. In the Fax settings area, complete the following fax server settings:

    • SMTP server host—Your SMTP server hostname. This is the server used to send your scans as emails to the fax provider.

    • Port—The port to connect to on the SMTP server. Common ports include 25 or 587 for TLS, and 465 for SMTPS(SSL).

    • Username—The username for SMTP authentication. Typically an email address. This username is used by PaperCut to log into the SMTP server.

    • Password—Password for SMTP authentication.

    • Email suffix—The email suffix provided by your fax provider. This suffix gets appended to the fax number before sending it to the fax provider.

    • Encryption—Choose between None, SSL, and TLS.

    • Reject untrusted certificate—Select this checkbox when using an external email service like Gmail or if you run your own email server with a trusted certificate. This prevents man-in-the-middle attacks by blocking the connection if the email server presents a certificate that has not been signed by a trusted certificate authority.

      Do not select the checkbox if you run your own email server with a self-signed certificate.

  6. In the How users select the recipient at the device section:

    • If you are setting up a fixed recipient, select Fixed recipientand complete the following fields:
      • Fax number—The fax number of the recipient.

      • Recipient name—The name of the recipient. This information will appear on the fax cover sheet, depending on your cover page configuration.

      • Recipient company name—The company name of the recipient. This information will appear on the fax cover sheet, depending on your cover page configuration. Optionally, you can make this field non-editable.

    • If you want to let the users enter the fax number at the MFD, select Users can specify the recipient.

Delivery via API

  1. Select Devices > scan actions.

  2. In the Actionsmenu, click Create new. The Scan Action Details page is displayed.

  3. In the Destinationsection, select click Fax.

  4. Complete the following fields:

  5. Fax provider—Select your fax provider

  6. Label—Enter a name for the scan action (maximum 25 characters). This label is displayed to the user on the device.

  7. Complete the Fax settings area to match the settings required by the Fax Provider you selected above.

    Fax Provider Field Description

    GoFax

    To configure GoFax, you need to create an API access token for PaperCut to use to authenticate with the GoFax server.

    API base URL https://restful-api.gofax.com.au/v1.1
    Authentication token To find out details on how to create an API access token, see the GoFax documentation https://support.gofax.com.au/portal/en/kb/articles/api-access-tokens

    RightFax

    RightFax is one of the leading fax providers. PaperCut provides connectivity via APIs for RightFax 10.6 Feature Pack 1 or later.

    The RightFax Web API uses standard HTTP Basic Authentication. To configure RightFax, you need to create a user that has access rights to send faxes.

    API base URL Supported versions of RightFax automatically configure IIS so the following API root URL will access the API: http://server/rightfax/api where server is the hostname of the computer where RightFax is installed.
    Username The username of the user/service account that PaperCut will use to connect to the RightFax server.
    Password The password of the user/service account that PaperCut will use to connect to the RightFax server.

    XM Fax Cloud

    XM Fax is another prominent fax provider that has both cloud and on-premises solutions.

    To configure XM Fax Cloud, you need to create an API access token for PaperCut to use to authenticate with the XMedius server.

    API base URL

    https://portal.xmedius.com/services/permalink/fax/
    faxservice/url
    where permalink is the login name of your cloud faxing service account.

    Authentication token

    Refer to XM Fax documentation to find out how to create an access token.

    When creating the authentication token, make sure to grant these permissions.

    • Manage users
    • Send and manage faxes
    • Query user directory

    XM Fax On-premises

    XM Fax On-premises is identical to the cloud version except the API access method uses basic authentication. The PaperCut connector supports XM Fax On-premises versions 9.0+ and later.

    To configure the XM Fax On-premises connector, you need to create a user that has access rights to send faxes.

    API base URL https://server:8443/faxservice/Fax where server is the hostname of the computer where XM Fax On-premisis is installed.
    Username The username of the user/service account that PaperCut will use to connect to the XM Fax server.
    Password The password of the user/service account that PaperCut will use to connect to the XM Fax server.

    Retarus (coming soon)

    Retarus is a leading online faxing provider in the US and Europe. If Retarus is your fax provider, you can use the PaperCut API-based Retarus connector to send faxes.

    The Retarus Web API uses standard HTTP Basic Authentication. To configure, you need to create a user that has access rights to send faxes. For more details, refer to your Retarus documentation.

    API base URL

    The service is reachable via :

    For further details, contact Retarus.

    Username The username of the user/service account that PaperCut will use to connect to the Retarus server.
    Password

    The password of the user/service account that PaperCut will use to connect to the Retarus server.

    eGoldFax

    To configure eGoldFax, you need to provide the account ID and the sender reference that you recieved from eGoldFax for your organization.

    API base URL

    Account ID

    Sender reference

    https://egoldfaxexternalapidev.azurewebsites.net/api/
  8. In the How users select the recipient at the device section:

    • If you are setting up a fixed recipient, select Fixed recipientand complete the following fields:
      • Fax number—The fax number of the recipient.

      • Recipient name—The name of the recipient. This information will appear on the fax cover sheet, depending on your cover page configuration. Optionally, you can make this field non-editable.

      • Recipient company name—The company name of the recipient. This information will appear on the fax cover sheet, depending on your cover page configuration. Optionally, you can make this field non-editable.

    • If you want to let the users enter the fax number at the MFD, select Users can specify the recipient.


  1. Complete the fields in the Document area. For details, click the field names below.

Display label

The label for the filename field on the device. If you change the default value of Filename, the label in the next field is also changed. You can change the label to provide more specific guidance to the user about the format of the filename. For example, if you have a scan action to send invoices to a cloud drive and you want the scanned invoice file to be named according to the invoice number, you could change the label to Invoice No..

Filename

The default value for the filename. You can use macros, such as %Label% in the filename. For more information about the available macros, click More Information in the Document area or see Substitution variables/macros.

User can edit

Select this checkbox if you want to allow users to change the default filename at the device.

Advanced—Include scan metadata file. For scan to email or folder only.

Select one of these checkboxes if you want to generate an XML or JSON metadata file. For example, you might want to upload the scanned documents to a Content Management System.

The scan metadata file includes the:

  • shared and personal account name

  • local date and time of the scan

  • device used for the scan

  • email address to which the file was sent

  • filename

  • scan job id

  • username

For more information, see Scan metadata file.


  1. Complete the fields in the Input settings, Output settings, and Document Processing areas. For details, click the field names below.

Orientation

Select Portrait or Landscape.

Duplex mode

Select 1-sided or 2-sided .

Paper size

Select the default paper size that is highlighted on the device’s Scan Settings screen’s Paper Size field:

  • For ISO standard - A3, A4, A5, Auto (Same size), Auto (Mixed sizes)

    Default: A4

  • For North American standard - Letter, Legal, Ledger, Auto (Same size), Auto (Mixed sizes)

    Default: Letter

Note:

  • Customizing a device’s config key ext-device.scan.default-paper-size, overrides these paper size defaults for the corresponding device.

  • The Auto options are only available on some devices. On these devices:

    • Auto (Same size) - maps as Same on the device, and applies the first page’s paper size to all other pages

    • Auto (Mixed sizes) - maps as Mixed on the device, and retains each page’s original paper size.

File type

Select up to three of the output file types to make them available to users at the MFD: PDF , JPEG , TIFF, or DOCX). If you don’t have any specific requirements around the file type, using PDF is a safe option.

For Scan to Fax, either select PDF(it is universally supported by Fax Providers), or to find other file types that your fax provider supports, refer to their documentation.

  • If you select PDF, you can also select Make Searchable to make the output a searchable PDF file using OCR.

  • If you select only one file type, that is the only one users will see at the MFD. You cannot select more than three file types due to limitations in the display panel size of some MFDs.

Default file type

Select the default type of file to be created if a user does not select a file type at the MFD ( PDF, TIFF, or JPEG).

If you have selected only one file type, you do not need to select a default.

For Scan to Fax, select PDF.

DPI

Select the resolution of the scan ( 100, 200, 300, 400 or 600 DPI).

For Scan to Fax, most fax providers support two or more resolutions for scanned documents - fine mode (204 x 196 dpi) and standard mode (204 x 98 dpi). So a resolution above 300 dpi is not going to improve the quality of your fax.

Color mode

Select whether you want scans to be Color, Grayscale or B&W (black and white) or Auto.

For Scan to Fax actions, the default color mode is Grayscale.

Remove Blank Pages

  • Enabling this option will automatically detect and remove blank pages before delivering the scanned document.

  • By default, Remove Blank Pages is OFF

  • Blank page detection sensitivity can be fine-tuned using system.scan.docproc.blank-threshold from the Config Editor page.

Batch Splitting

  • Enabling this option will separate a single input document into multiple scanned output documents.

  • By default, Batch Splitting is OFF

  • Select the batch splitting method ( New document every N pages, or Split on blank page separator)

  • The output documents from a Batch Split scan job all share the same job settings, and are sequentially named EG) Filename_1, Filename_2, Filename_3, etc

User can edit

Select one or both of these checkboxes if you want to allow users to change the DPI and/or Color mode from the default value at the device.


  1. If you want to include any notes about the scan action, enter them in the Admin Notes area. For example, if you have specified an email address, you might want to explain who the email is being sent to.

  2. Click Save & configure access.
    The Access List page is displayed. This page allows you to set the scanning permissions.

    Setting scan action permissions in the PaperCut MF admin interface
  3. Select the groups and users to whom you want to make this scan action available:

    1. Select the group or user from the list
    2. Click Add.

    The user or group is added to the Access Control List (ACL).

    For more information about setting up groups, see Groups in PaperCut NG/MF.

Step 2: Configure the capture settings

  1. Click Options > Capture. The Capture screen is displayed.

    Capture settings in the PaperCut MF admin interface

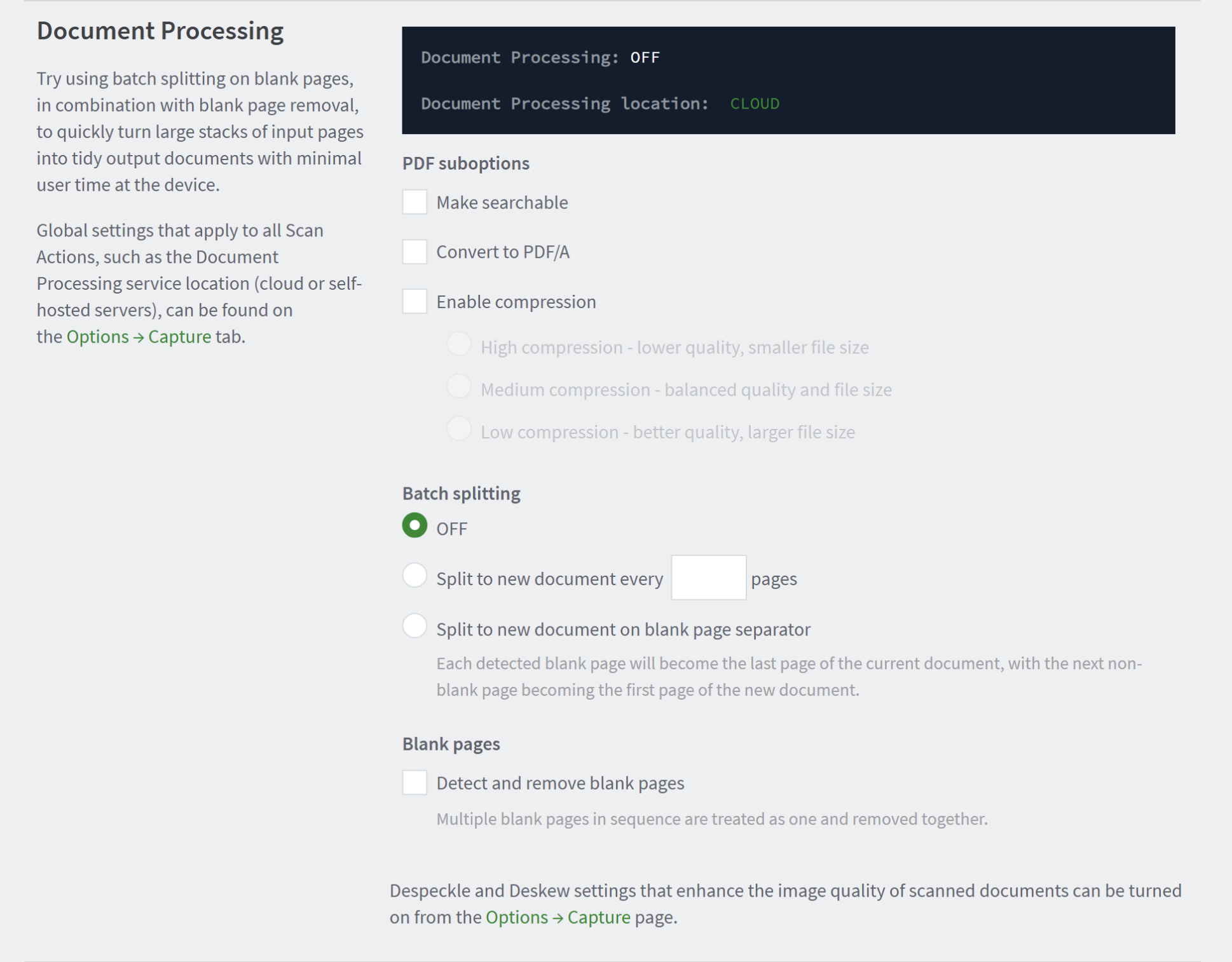

  2. In the Document Processing section, you can configure the optional Despeckle and Deskew settings. These settings apply to all new and existing scan actions:

    Despeckle

    When Despeckle is active, background pixel noise is automatically removed from scanned pages

    Deskew

    When Deskew is active, pages that are crooked by up to 45 degrees are straightened.

  3. Select up to 10 languages you want OCR to detect and process in your scans.

    Choosing OCR languages in the PaperCut MF admin interface
  4. Click Apply.

Step 3: Enable Integrated Scanning for a device

For each scanning device, you must enable Integrated Scanning.

  1. In the Admin web interface, click the Devices tab.
    The External Device List page is displayed.

  2. Select a device.
    The Device Details page is displayed.

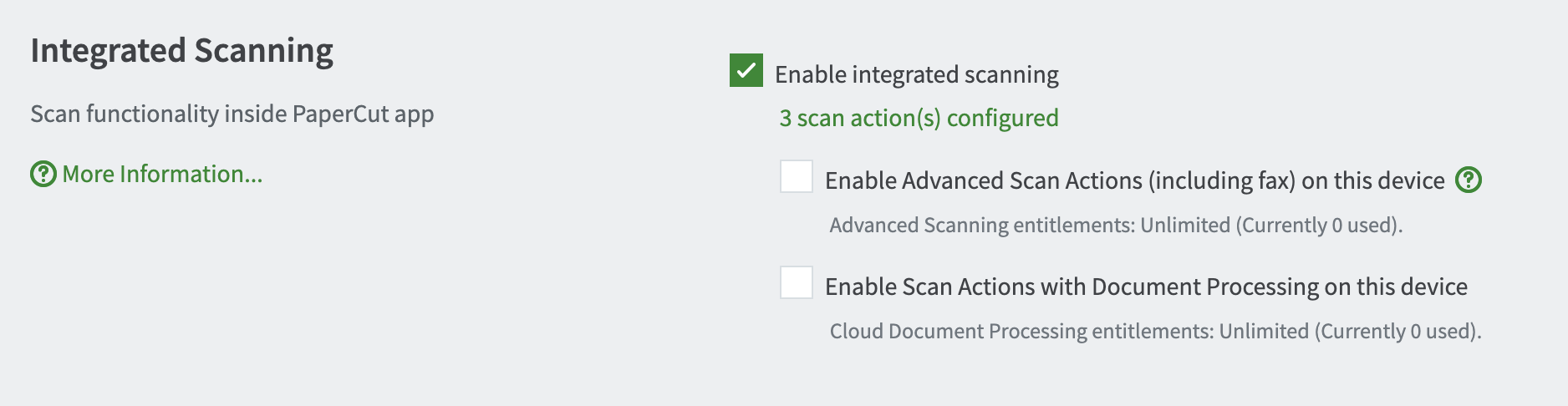

  3. In the Integrated Scanning area, select the Enable Integrated Scanning check box.

  4. Click OK. For all scan actions except Scan to Fax, integrated scanning is now set up and you have finished the basic configuration.

  5. Scan to Fax only
    If you configured Scan to Fax to deliver scans via API, go to Enable Advanced Scan to Fax actions.
